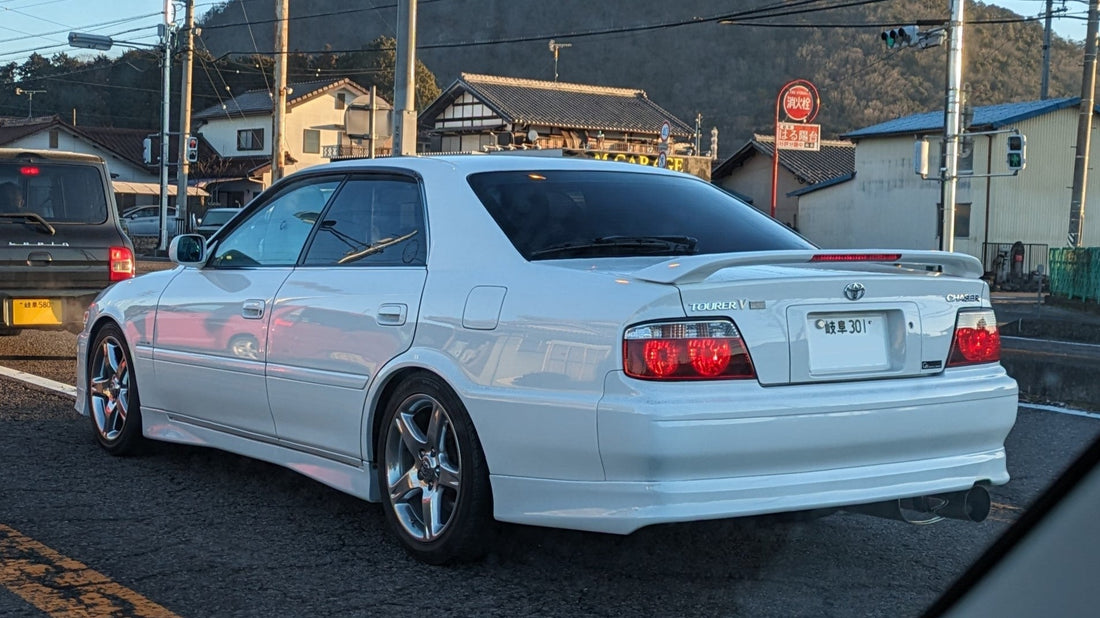

Toyota Chaser JZX100: 18x9 +19 / 18x10 +24 vs Stock Wheel Offset
How aggressive is an 18x9 +19 front and 18x10 +24 rear wheel setup on a Toyota Chaser JZX100 Tourer V? The answer becomes clearer when you compare the new wheel positions with the high-offset staggered factory reference. This guide shows the nominal inner and outer wheel changes, then explains what still needs measuring before a purchase.
Start with our main Toyota Chaser JZX100 wheel fitment guide for overall sizes, PCD and street-versus-modified setup considerations. This companion focuses only on the maths behind a particular genuine three-piece wheel specification—not an approval that it will fit your car.
Factory Tourer V wheel reference
A commonly documented JZX100 Tourer V wheel baseline is 16x6.5 +50 at the front and 16x7.5 +55 at the rear, with a 5x114.3 bolt pattern. Those are staggered factory positions, not a square set. Variants, options and modified hubs can differ: check the wheels and hubs on your actual car before making calculations. A Japanese vehicle specification reference is available at Cars Japan's JZX100 Tourer V wheel data.
18x9 +19 front / 18x10 +24 rear compared with factory
The nominal widths are measured between tyre bead seats, not across the outside edges of the wheel lips. When width increases by 2.5 inches, that adds 63.5 mm across the nominal bead seats, or 31.75 mm on each side if the offset stays unchanged. Both of these aftermarket examples also reduce positive offset by 31 mm relative to the respective factory position.
| Axle | Factory reference | Example aftermarket wheel | Nominal outer bead-seat change | Nominal inner bead-seat change |
|---|---|---|---|---|
| Front | 16x6.5 +50 | 18x9 +19 | About 62.8 mm farther outward | About 0.8 mm farther inward |
| Rear | 16x7.5 +55 | 18x10 +24 | About 62.8 mm farther outward | About 0.8 mm farther inward |
That is a large outward difference. It does not mean the aftermarket set will clear the guards, brakes or tyres simply because the nominal inner bead-seat position changes very little. Rim flanges, tyre shoulders, suspension travel and steering geometry still matter, as do wheel-face and barrel dimensions.
Why does lowering the offset move the wheel outward?
Offset measures the mounting-face position relative to the wheel centreline. At the same nominal width, changing a +50 wheel to +19 moves the whole wheel approximately 31 mm outward. Widening from 6.5 inches to 9 inches simultaneously adds about 31.75 mm to the outer side. Together that puts the outer bead seat approximately 62.75 mm farther outward. The rear example follows the same arithmetic because both its factory and aftermarket widths are one inch greater, with the same 31 mm offset change.
For the general formula and how a different offset affects an identical-width wheel, read Wheel Offset Explained and Wheel Width Explained.
What if you compare a square 18x9.5 +38 wheel?
Square 18x9.5 +38 wheels are a different positioning exercise—not automatically an easier or better Chaser setup. Against the 18x9 +19 front example, a square 18x9.5 +38 rim puts its nominal outer edge approximately 12.7 mm farther inward while extending its inner edge around 25.4 mm farther inward. Against the 18x10 +24 rear example, the square 18x9.5 +38 rim has approximately 20.4 mm less outer extension but around 7.7 mm more inner extension.
A higher positive offset may reduce guard protrusion but reduce suspension-side room. It still cannot prove brake clearance, especially when comparing different wheel faces and constructions.
Genuine wheel sets you can compare
These are actual HausofWheels catalogue examples at the time of writing. They demonstrate the stated geometry, but are not guaranteed bolt-on fitments for a standard or modified JZX100. Check current product availability and exact brake, tyre and guard clearance before purchasing:
- SSR Reiner Type 6R Titan Silver, 18x9 +19 front / 18x10 +24 rear, 5x114.3 — a direct example of the aggressive staggered geometry.
- RAYS Gram Lights 57CR Gloss Black, 18x9.5 +38, 5x114.3 — a different square-size reference for comparing inner and outer positioning.
Browse the Toyota Chaser JZX100 wheel collection or current Sydney Stock wheel sets for more candidates. Collection inclusion or a matching bolt pattern does not establish fitment approval.
Before ordering wider JZX100 wheels
- Confirm the exact Chaser grade, year, five-stud hubs and current front/rear wheel sizes.
- Record tyre width, tyre model, rolling diameter, ride height, alignment, guard work and suspension hardware.
- Verify inner suspension and outer guard clearance through steering and suspension movement, especially on a lowered car.
- Confirm the exact wheel model's centre bore, load rating, fastener seat and brake-caliper/barrel clearance; three-piece disc types can matter.
- If anything is unclear, send HausofWheels the car's current setup and the exact wheel you're considering. We supply wheels, but do not offer test fitting or installation.
JZX100 staggered wheel offset FAQ
Is 18x9 +19 / 18x10 +24 a guaranteed bolt-on Chaser setup?
No. The position is dramatically farther outward than the Tourer V factory baseline; body modifications, tyres and suspension may need changes. A successful fit on one car does not certify another.
Does the similar inner bead-seat position mean the suspension will clear?
No. Actual rim lips, tyre sidewalls, suspension geometry, wheel weights and motion through the travel range require separate checks.
Will a square 18x9.5 +38 clear the front brakes?
Not from the specifications alone. PCD, width and offset do not describe the wheel's spoke-to-caliper distance or barrel shape.
Figures are rounded nominal wheel-geometry comparisons at the mounting face, not physical vehicle measurements, a fitting certificate or engineering approval.
