RAYS 57DR 5x100 for GR86, BRZ & WRX: 18x9.5 +38 Guide

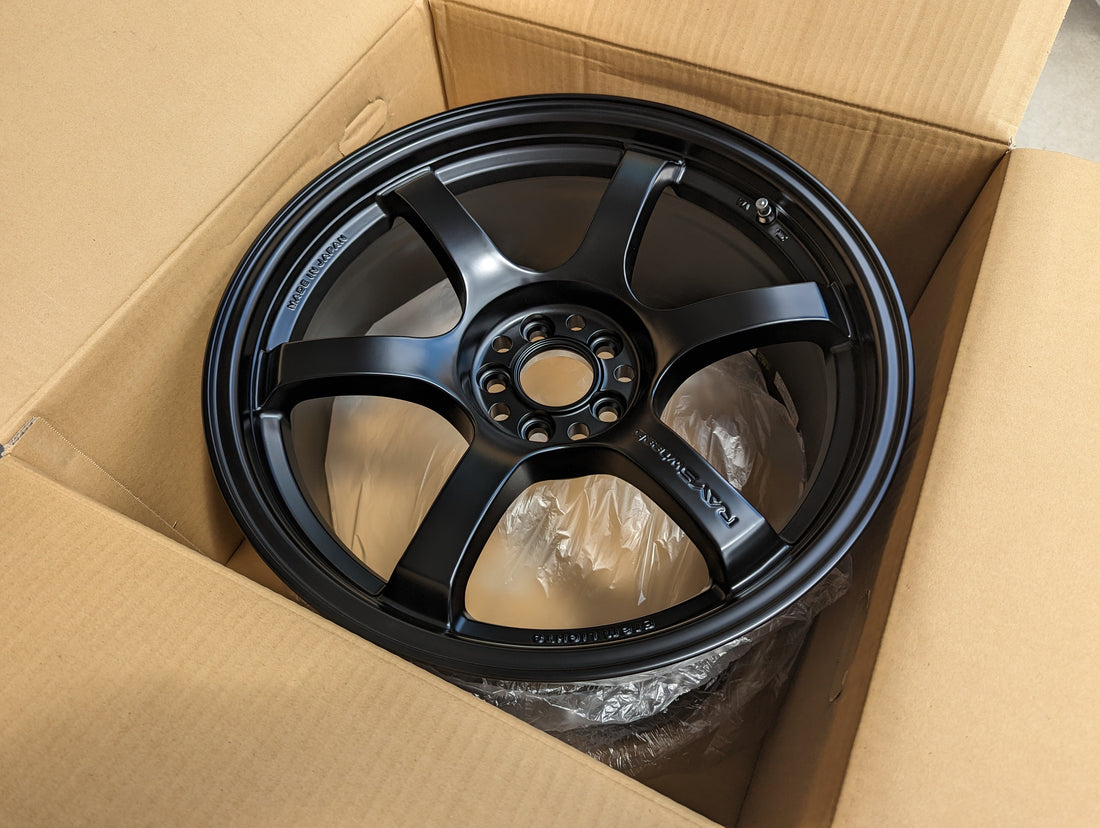

The RAYS Gram Lights 57DR is a popular six-spoke Japanese performance wheel, and HausofWheels currently lists a 5x100 18x9.5 +38 specification in Semi Gloss Black. That specification is attractive for Toyota GR86, Subaru BRZ and selected Subaru WRX builds, but PCD alone does not guarantee fitment.
Current 57DR 5x100 specification
For a current example of this 5x100 18x9.5 +38 geometry, see RAYS Gram Lights 57DR Bronze 5x100 18x9.5 +38, currently listed as Sydney Stock. The Semi Gloss Black 18x9.5 +38 specification is another valid technical comparison, but that particular listing is presently unavailable. Verify tyre, ride height, alignment and brake clearance on the exact vehicle rather than relying on PCD alone.
GR86 and BRZ considerations
The Toyota GR86 ZN8 and Subaru BRZ ZD8 use a 5x100 PCD. An 18x9.5 wheel is wider than the factory wheel on these cars, so inner suspension clearance and outer guard clearance both become important. Lower ride height, tyre width and alignment can materially change the result.
Before ordering, compare the wheel against the dedicated GR86 / BRZ wheel collection and read the broader GR86 / BRZ fitment guide.
Subaru WRX 5x100 considerations
Many earlier Subaru WRX applications use 5x100, but model year, brake package and suspension setup must be confirmed. Use the dedicated Subaru WRX 5x100 wheel collection rather than assuming every WRX uses the same bolt pattern.
If you are unsure which WRX PCD applies, see our Subaru WRX 5x100 vs 5x114.3 guide.
What to check with 18x9.5 +38
- Exact vehicle model and year
- 5x100 PCD
- Brake-caliper clearance
- Inner suspension clearance
- Outer guard and tyre clearance
- Tyre width and profile
- Ride height and alignment
- Centre-bore and hub-ring requirements
Compare other 57DR specifications
Browse the dedicated RAYS Gram Lights 57DR 5x100 collection for other 5x100 sizes and finishes, or use the full 57DR family to compare both PCDs. You can also compare all 5x100 JDM wheels.
Later WRX/STI, Evo, Silvia and Skyline owners should use the separate 57DR 5x114.3 collection.
HausofWheels supplies genuine RAYS wheels only. Check each product page for its current In Stock / Sydney Stock, Enquire for Stock, Available to Order or Sold Out status before purchasing. Check the exact specification and vehicle fitment rather than assuming availability from this guide.
What 18x9.5 +38 means in practice
An 18x9.5 +38 wheel is a relatively wide aftermarket specification. The 9.5-inch width affects both inner suspension clearance and outer guard position, while the +38 offset changes where that width sits relative to the hub. This is why a 5x100 bolt pattern by itself is not enough to say the wheel will fit a GR86, BRZ or WRX.
Tyre choice is part of the fitment
The tyre can change the real-world clearance just as much as the wheel specification. Tyre width, sidewall profile and the shape of the tyre's shoulder all affect how close the package sits to the suspension and guard. A setup that works on one car can rub on another if the tyre size, ride height or alignment is different.
Street car vs lowered or modified car
For a street-driven car, the priority is usually predictable clearance through steering movement and suspension travel. Lowered or track-focused cars may use more aggressive wheel and tyre packages, but they can require additional alignment, negative camber or other clearance work. Treat modified-car examples as references rather than guarantees.
57DR 5x100 FAQ
Will 18x9.5 +38 fit a GR86 or BRZ?
It can be a viable aftermarket specification, but the final answer depends on tyre size, suspension height, alignment, brake clearance and the exact car. Use the GR86 / BRZ collection and confirm your setup before purchase.
Is 18x9.5 +38 suitable for every 5x100 WRX?
No. WRX applications vary by generation and brake package. Start with the WRX 5x100 collection and verify your exact model.
What other 5x100 18-inch wheels can I compare?
Browse the 5x100 18-inch wheel collection to compare other RAYS, Enkei, SSR, WORK and Japanese performance-wheel options by width and offset.
Need a second fitment check?
Send HausofWheels your exact vehicle year and variant, current wheel and tyre setup, brake package, suspension changes and the wheel specification you are considering through our contact page. We can help identify what still needs confirming before ordering. We supply wheels only and do not offer test fitting or installation.
Official RAYS 57DR manufacturer reference
RAYS publishes the Gram Lights 57DR technical specifications, including current wheel sizes, PCD options, construction and accessory information. Special colours and 57DR Limited editions can have separate factory specifications; verify the exact model, finish and manufacturer part number on the wheel you are considering. PCD and offset alone do not confirm caliper, suspension, tyre or guard clearance on a particular GR86, BRZ or WRX.
57DR 18x9.5 +38 on a widebody 86 or BRZ
Adding Rocket Bunny or Pandem overfenders does not automatically make 18x9.5 +38 the ideal wheel specification. See the widebody 86/BRZ wheel-offset and 5x100 guide to compare the exact kit's published flare width against the wheel's nominal outward movement, then verify tyre, caliper, coilover and guard clearance on the built car.
Considering a smaller wheel? Compare this 18x9.5 +38 specification with the RAYS 57DR Gun Blue II 17x9 +38 5x100 fitment guide. The same offset number does not give identical inner or outer clearance when wheel width changes.
